EAP723

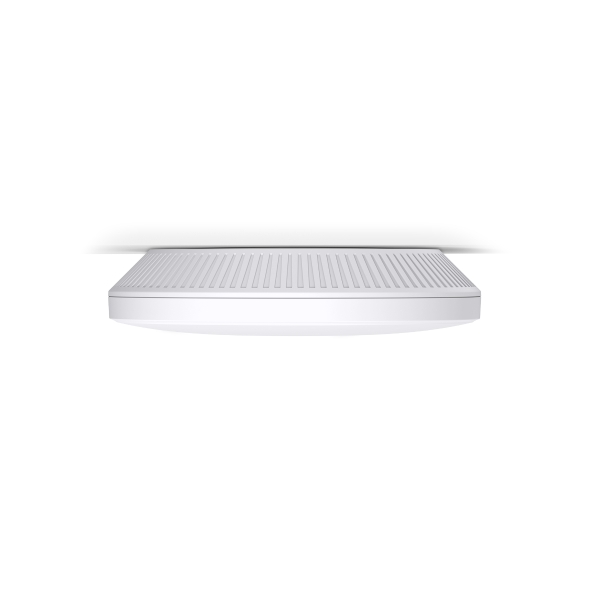

Sắp ra mắtAccess Point Wi-Fi 7 Gắn Trần BE5000
- BE5000 Dual-Band Wi-Fi 7 (4324 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).†
- 1× 2.5G port unlocks the full potential of Wi-Fi 7.
- 240 MHz bandwidth enables many more simultaneous transmissions.‡
- Multi-RUs ensure the high performance of your network.‡
- Advanced Functions: Centralized management, Mesh, and Seamless Roaming.△
| TÍNH NĂNG PHẦN CỨNG | |
|---|---|
| Giao diện | 1× 2.5G Ethernet Port |
| Nút | Reset |
| Bộ cấp nguồn | 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included) |
| Điện năng tiêu thụ | • 19.5 W (For PoE); • 16.8 W (For DC) |
| Kích thước ( R x D x C ) | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Dạng Ăng ten | • 2.4 GHz: 2× 3.0 dBi• 5 GHz: 2× 3.0 dBi |
| Lắp | Ceiling / Wall Mounting (Kits Included) |
| TÍNH NĂNG WI-FI | |
|---|---|
| Coverage | 140㎡(1500 ft²)*** |
| Wireless Client Capacity | 250+** |
| Chuẩn Wi-Fi | IEEE 802.11 a/b/g/n/ac/ax/be |
| Băng tần | 2.4 GHz and 5 GHz |
| Tốc độ tín hiệu | 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz) |
| Tính năng Wi-Fi | • 4K-QAM‡• Seamless Roaming• MU-MIMO‡• EHT240‡• Mesh△• OFDMA‡• Load Balance• Band Steering• Beamforming• Airtime Fairness• Multiple SSIDS:16(8 on each band)• Wireless Schedule• Reboot Schedule• QoS(WMM)• Rate Limit• Static IP/Dynamic IP• RADIUS Accounting• MAC Authentication |
| Bảo mật Wi-Fi | • Captive Portal Authentication△• Access Control• Maximum number of MAC Filter: 4,000• Wireless Isolation Between Clients• VLAN• Rogue AP Detection• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Công suất truyền tải | < 25 dBm (2.4GHz)< 25 dBm (5GHz, band 1&band 4)< 24 dBm (5GHz, band 2&band 3) |
| QUẢN LÝ | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller• Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Quản lý kiểm soát truy cập MAC | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Quản lý dựa trên Web | Yes |
| KHÁC | |
|---|---|
| Chứng chỉ | CE, FCC, RoHS, IC |
| Sản phẩm bao gồm | • EAP723• Installation Guide• Ceiling/Wall Mounting Kit |
| Môi trường | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing; |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be) and features including 240 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
△Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
