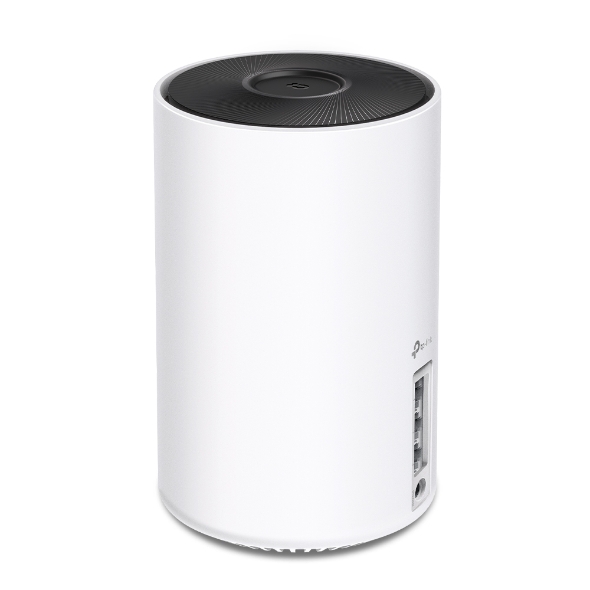

Deco WE10800

New

AXE5400 Tri-Band Mesh Wi-Fi 6E System

  • Whole Home WiFi 6E  – Cover up to 5,500 ft2 with seamless WiFi and make dead zones and buffering a thing of the past.
  • True Tri-Band Speed – All three WiFi bands work together to unleash your network’s total speeds up to 5,400 Mbps for 200 devices.
  • Seamless AI-Driven Mesh – Unites your home under one name and password while delivering the best connections as you move from room to room.
  • TP-Link HomeShield – Keeps your home network safe with cutting-edge features for network and IoT protection.*
  • Setup Made Easier Than Ever – The Deco app walks you through setup step-by-step.
  • Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.**
wifi-6e

Mesh WiFi Evolved

AXE5400 Tri-Band Whole Home WiFi 6E System

Deco WE10800

google Alexa HomeShield

Tri-Band Speed up to

5.4 Gbps

HomeShield Security

Connect up to 200 Devices

Seamless
AI-Driven Mesh

Seamless Coverage up to

5,500 sq.ft.

for 2-pack

Full Gigabit Ports

Upgrade Your WiFi to 6E

WiFi 6E utilizes the capabilities of 6 GHz to enable high-bandwidth applications that require faster data throughput such as high-definition video streaming and virtual reality, as well as lower latency connectivity for online gaming applications.

  •

    More spectrum,
    lower latency

  •

    Wider channels,
    more throughput

  •

    Congestion-free,
    less interference

  •

    Supports all WiFi
    generations and devices

  • Warp Speeds for 8K Streaming

    Warp Speeds for 8K Streaming

  • Online Gaming with No Lag

    Online Gaming with No Lag

  • Ultra-Smooth VR/AR Experience

    Ultra-Smooth VR/AR Experience

Engineered for Blazing Fast Speed up to 5.4 Gbps

Experience ultra-fast Wi-Fi with more connected devices thanks to the brand-new 6 GHz band. The added 160 MHz channels prevent competition over bandwidth and drops in speed.

  • 2402 Mbps

    bar-1

    6 GHz

  • 2402 Mbps

    bar-2

    5 GHz

  • 574 Mbps

    bar-3

    2.4 GHz

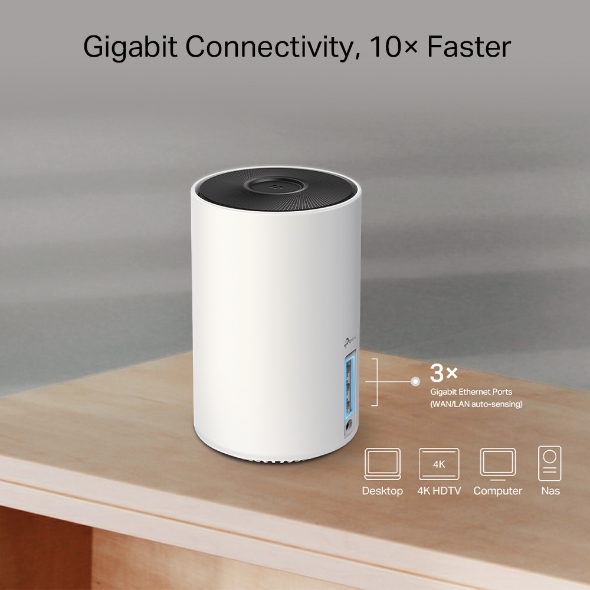

Gigabit Connectivity, 10× Faster

With 3 Gigabit WAN/LAN ports, speeds can be up to 10× faster than standard Ethernet connections. Connect your favorite wired devices to Deco WE10800 and get impressed!


Gigabit Ethernet Ports (WAN/LAN auto-sensing)

  •

    Desktop

  •

    4K HDTV

  •

    Computer

  •

    Nas

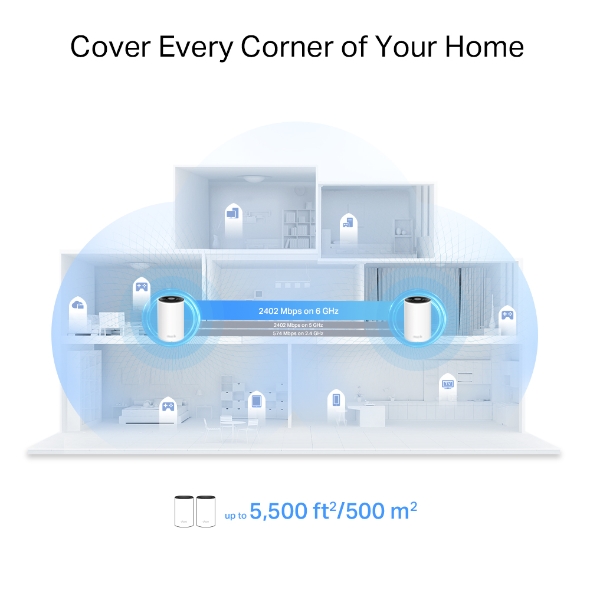

The Best Performance & Coverage

The 6G band is used together with other bands to serve as the wireless backhaul connection between the Deco units, bringing the most stable and strongest network, covering every corner of your home. Thus, it also improves the overall WiFi performance of all non-6E devices.

prod prod    up to 5,500 ft/ 500 m2



Engineered for
More Devices

Deco products are aimed to dramatically improve capacity and efficiency in traffic-dense environments. No matter how many screens or devices are on at once, everyone is able to enjoy a more efficient network that loads faster without dragging down performance.

Gaming

8K Streaming

Phones and
Tablets

1080P Streamings

Smart Home
Devices

High-Speed
Downloading

4K Streaming

IP Camera
Streaming

Web Browsing

connections for up to
200
devices

Seamless AI-Driven Mesh

Uninterrupted Streaming when Moving Between Rooms

Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal WiFi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.

  •

    Seamless Roaming with One WiFi Name

  •

    Sophisticated Algorithms

  •

    Seamless AI-Driven Mesh

  •

    Customized WiFi

HomeShield

Smart Security for Smart Living

HomeShield provides a series of built-in services that protect all your devices comprehensively with various features for when you’re at home or on the go. With HomeShield, safer internet experiences bring more happiness to your smart living.

  •

    Network Protection

    Simply configure your gateway and achieve whole home network security. HomeShield examines your network by scanning and identifying potential risks, stopping them in their tracks before they harm your network.*

  •

    Parental Controls

    Parental Controls protect your kids, while helping them maintain healthy digital habits. Parents can set app blocking, web filtering, YouTube restrictions, SafeSearch, and online time limits to keep kids safe while they’re having fun online.*

  • KidShield App

    Devices Security App



    Maintain Protection Away from Home

    Devices remain secure everywhere with the devices security app. And through KidShield, parents can monitor their kids’ locations and set geofencing. This way, kids stay digitally protected even on the go.*

Simple. Easy. Yet Powerful.

Set up and manage your network anytime and anywhere on the user-friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.

  • 1 CONNECT
    to a modem and power on both.

  • 2 DOWNLOAD
    and launch the Deco app.

  • 3 CONFIGURE
    by following the in-app instructions.

  • Easy Management

    Manage your WiFi at home or away on the Deco app. See every connected device, prioritize your own, and set up a guest network.

    Easy Management
  • Voice Control Network

    Voice Control

    Use an Amazon Alexa or Google Assistant-enabled device to control Deco WE10800 with just your voice.

    Alexa Google

  • All Decos Work Together

    Deco WE10800 is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by adding more Decos.

    All Decos Work Together
WIRELESS
Standards Wi-Fi 6E
IEEE 802.11ax 6 GHz
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds WE10800
6 GHz: 2402 Mbps (802.11ax, HE160)
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 4-7+ Bedroom Houses

TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

4× High-Gain Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Tri-Band
A newly-opened 6 GHz band brings more bandwidth and faster speeds

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity Very High
Tri-Band
Distribute devices to different bands for optimal performance

2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 6 clients

6 Streams
More than enough bandwidth for connected devices
Working Modes Router Mode
Access Point Mode
SECURITY
Network Security SPI Firewall
Access Control

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 6 GHz Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
WiFi Encryption WPA-Personal
WPA2-Personal
WPA3-Personal
HARDWARE
Ethernet Ports 3× Gigabit Ports

*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons Reset Button
SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeShield
Learn More>
Parental Controls HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service HomeShield QoS
QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App
TEST DATA
WiFi Transmission Power CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
<23 dBm (6 GHz)

FCC:
<30 dBm (2.4 GHz)
<30 dBm(5 GHz)
<30 dBm(6 GHz)
PHYSICAL
Dimensions (W×D×H) 4.1 × 4.1 × 6.7 in
(105 × 105 × 170 mm)
Package Contents Deco WE10800
2 Deco WE10800 units
1 RJ45 Ethernet cable
2 Power adapters
1 Quick Installation Guide
OTHERS
Certifications CE, FCC, RoHS
Environment Operating Temperature: 0°C~40°C (32 °F~104 °F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location. The 160 MHz and 240 MHz bandwidth might not be available on the 5 GHz band, and the 320 MHz bandwidth might not be available on the 6 GHz band in some regions/countries due to regulatory limits on the spectrum, hence the theoretical speeds may vary.

Clients need to support 802.11k/v/r and may require additional setup. Performance may vary depending on the client device.

Use of WiFi 7 (802.11be), WiFi 6 (802.11ax), WiFi 6E (802.11ax), and other features including MLO, 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO, and BSS Color requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Not all 320 MHz channels may be available in the 6 GHz band in some regions/countries due to regulatory restrictions.

*HomeShield includes the Free Basic Plan. Fees apply for the Pro Plan. Visit tp-link.com/homeshield for more information. Some features are under development and will be supported with subsequent software updates.

**WiFi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be.

Google and Google Home are trademarks of Google LLC.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.

This Deco may not support all the mandatory features as ratified in IEEE 802.11be specification.

Further software upgrades for feature availability may be required.
