Deco BE65 Pro

BE11000 Whole Home Mesh WiFi 7 System

  • 11 Gbps Tri-Band WiFi – 5764 Mbps (6 GHz) + 4324 Mbps (5 GHz) + 688 Mbps (2.4 GHz).
  • 5 Gbps Wired Connections – 2× 5 Gbps ports and 1× 2.5 Gbps ensure max flexibility and boosted throughput.§
  • Wireless and Wired Combined Backhaul  Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
  • Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.
  • 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.
  • Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.
  • TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.*
  • Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.

A True Whole Home
Multi-Gigabit Mesh WiFi

BE11000 Whole Home Mesh WiFi 7 System

Deco BE65 Pro

google home compatible-amazon-alexa HomeShield

Tri-Band WiFi 7
Speeds up to 11 Gbps

A True Whole Home
Multi-Gigabit
Mesh WiFi

The Ultimate 5G
Connectivity
Wired and Wireless

Connect Up to
200 Devices

Wireless and Wired Combined Backhaul

TP-Link HomeShield

Multi-Link Operation

4K-QAM

Seamless AI Roaming

Up to 320 MHz Bandwidth

WiFi 7, WiFi Like Never Before

WiFi 7 offers accelerated throughput, lower latency, stronger anti-jamming, and higher efficiency. Join the league of pros and experience the sheer performance of the next generation of WiFi.

  • Extremely High Throughput

    wifi7
  •
    Wi-Fi 6
  •
    Wi-Fi 5
  • 4.2× Faster WiFi

    than WiFi 6E Mesh

  • 4× Lower Latency

    For Smooth Video and Gaming※※

  • Higher Capacity

    Connects Up to 200 Devices



Lightning-Fast Tri-band WiFi
up to 11 Gpbs

Wi-Fi 7 unleashes the full potential of 4K-QAM and the 6 GHz band with up to 320 MHz channels, delivering unprecedented Wi-Fi speeds up to 11 Gbps. The new 6 GHz band provides exceptional bandwidth congetion-free channels.

  • 6 GHz



    5764 Mbps

  • 5 GHz



    4324 Mbps

  • 2.4 GHz



    688 Mbps

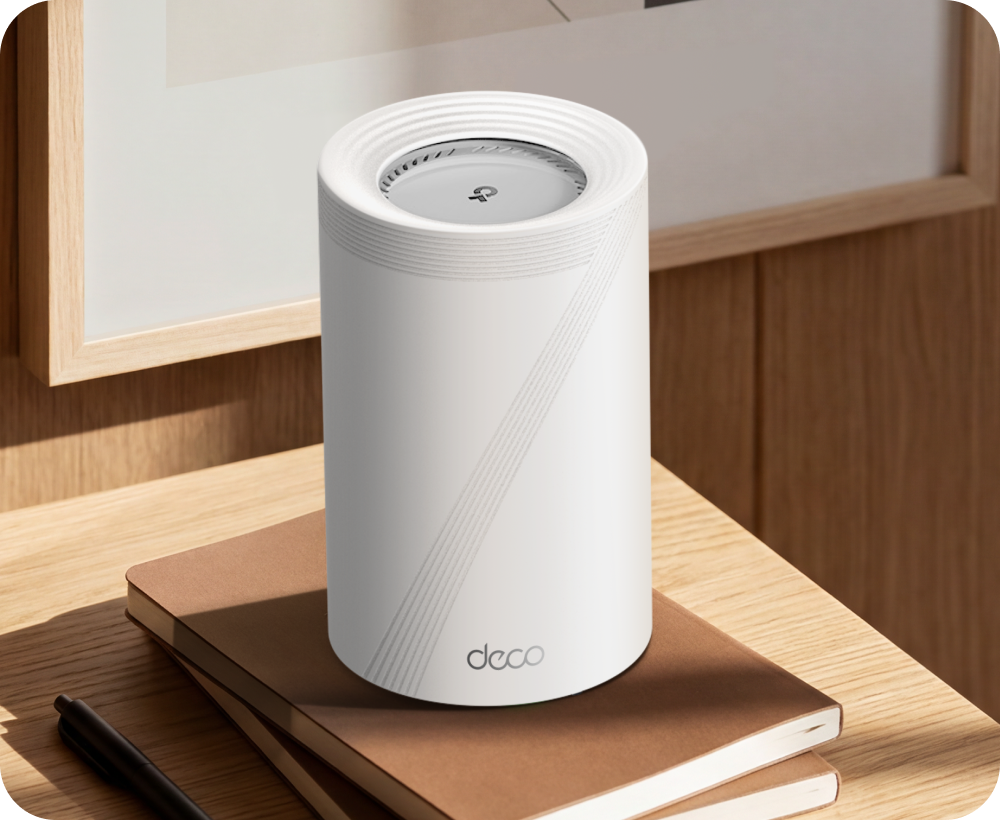

Ultra-Fast 5 Gbps
Wired Performance

Two 5 Gbps WAN/LAN ports and one 2.5 Gbps WAN/LAN port take full advantage of your broadband speed. Plug your PCs, smart TVs, or game consoles into the ports for blazing-fast wired connections.§ The additional USB port makes it an ideal solution for future-proofing your home network.

  • Desktop

    Desktop

  • 4K HDTV

    4K HDTV

  • Computer

    Computer

Supports gigabit+ and
multi-gig internet service plans up to

5 Gbps

2 × 5 Gbps
WAN/LAN Port

1× USB Port

1 × 2.5 Gbps
WAN/LAN Port


  •

    BSS Color Minimize
    WiFi Conflicts

  •

    Beamforming Concentrate
    Signal Strength

Cover Every Corner of Your Home

Deco BE65 Pro eliminates weak signal areas with clearer, stronger whole-home WiFi generated by BSS (Base Service Station) Coloring and Beamforming technologies as the WiFi dead zone killer.

prod prod prod    up to 7,600 ft²

prod prod    up to 5,800 ft²

prod    up to 3,000 ft²

Engineered for more devices

Wi-Fi 7 dramatically improves capacity and efficiency in traffic-dense environments. No matter how many screens or devices are on at once, everyone is able to enjoy a more efficient network that lead faster without dragging down performance. †

4K Streaming

Gaming

Web Browsing

IP Camera Streaming

High-Speed Downloading

8K Streaming

Phones and Tablets

Smart Home Devices

1080P Streaming

Connect
up to

200

devices

The Ultimate Backhaul: Stronger and More Flexible

Through our self-developed technology, Deco BE65 Pro can connect a wireless and wired backhaul with each unit simultaneously. What’s more, with the latest WiFi 7 MLO technology, the system’s wireless and wired combined backhaul aggregation flow rate is increased. This way, it greatly improves overall throughput and reduces latency, delivering broader coverage with more stable and reliable connections.

Wireless and Wired Combined Backhaul

Seamless AI-Driven Mesh

Uninterrupted Streaming when Moving Between Rooms

Deco Mesh forms a unified network with a single network name. With built-in AI-Roaming technology, it creates the ideal WiFi solution with its advanced algorithms and self-learning. Walk through your home and enjoy seamless streaming at the fastest possible speeds.

  •

    Seamless Roaming with One WiFi Name

  •

    Sophisticated Algorithms

  •

    Seamless AI-Driven Mesh

  •

    Customized WiFi

HomeShield

Smart Security for Smart Living

HomeShield provides a series of built-in services that protect all your devices comprehensively with various features for when you’re at home or on the go. With HomeShield, safer internet experiences bring more happiness to your smart living.

  •

    Parental Controls

    Simply configure your gateway and achieve whole home network security. HomeShield examines your network by scanning and identifying potential risks, stopping them in their tracks before they harm your network.*

  •

    Maintain Protection Away from Home

    Parental Controls protect your kids, while helping them maintain healthy digital habits. Parents can set app blocking, web filtering, YouTube restrictions, SafeSearch, and online time limits to keep kids safe while they’re having fun online.*

  •

    Quality of Service (QoS)

    KidShield App

    Devices Security App

    Devices remain secure everywhere with devices security app. And through KidShield, parents can monitor their kids’ locations and set geofencing. This way, kids stay digitally protected even on the go.*

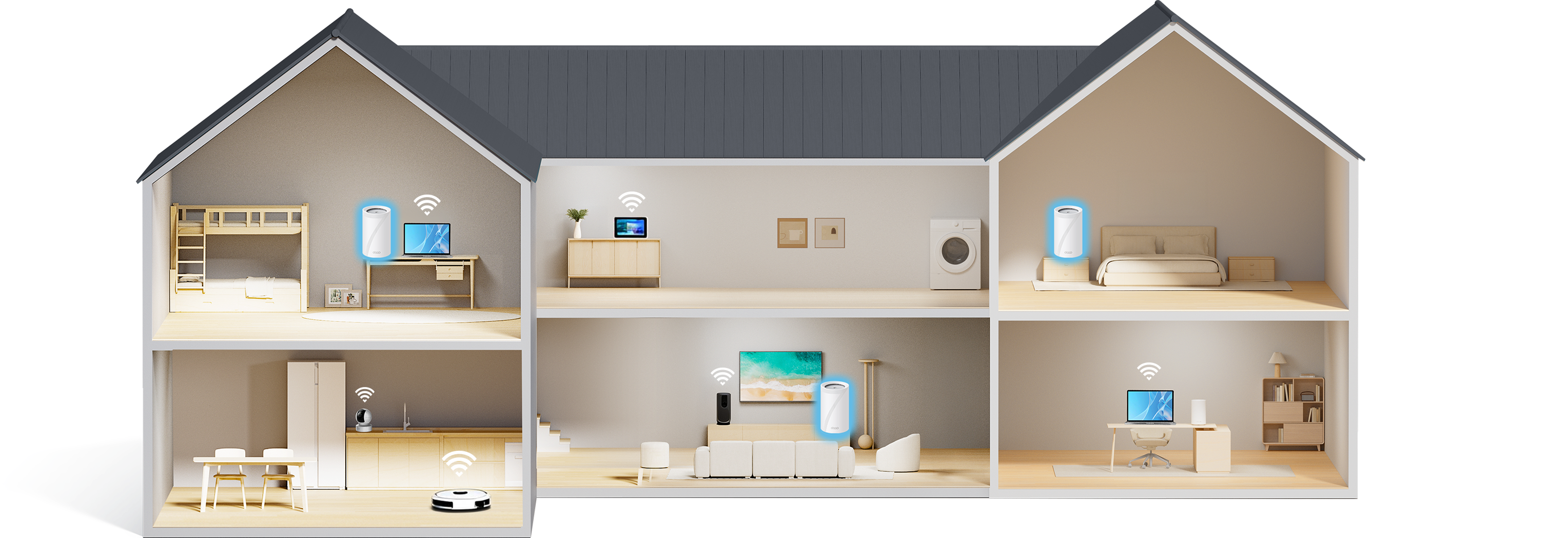

Private IoT Network for More Security

Set up a separate WiFi for IoT devices and overlay HomeShield and advanced WPA3 encryption** to better protect the security of your home network and IoT devices.

Simple. Easy. Yet Powerful.

Setup and manage your network anytime and anywhere on the friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.

  • 1 CONNECT
    to a modem and power on both.

  • 2 DOWNLOAD
    and launch the Deco app.

  • 3 CONFIGURE
    by following the in-app instructions.




Voice Control

Use an Amazon Alexa or Google Assistant-enabled device to control Deco BE65 Pro with just your voice.

Alexa Google



All Decos Work Together

Deco BE65 Pro is compatible with every other Deco model to form a Mesh network. Expand Mesh WiFi coverage anytime by adding more Decos.

WIRELESS
Standards Wi-Fi 7
IEEE 802.11be/ax 6 GHz
IEEE 802.11be/ax/ac/n/a 5 GHz
IEEE 802.11be/ax/n/b/g 2.4 GHz
WiFi Speeds BE11000
6 GHz: 5764 Mbps (802.11be)
5 GHz: 4324 Mbps (802.11be)
2.4 GHz: 688 Mbps (802.11be)
WiFi Range Broader Whole Home Coverage
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

4× High-Performance Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

Tri-Band
A newly-opened 6 GHz band brings more bandwidth and faster speeds
WiFi Capacity Very High
Tri-Band
Distribute devices to different bands for optimal performance

2×2 MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

OFDMA
Simultaneously communicates with multiple WiFi 7 clients

6 Streams
More than enough bandwidth for connected devices
Working Modes Router Mode
Access Point Mode
Advanced Functions • Multi-Link Operation (MLO)
• 320 MHz Channel
• 4K-QAM
• Multi-RUs
• Works with Alexa and Google Assistant
SECURITY
Network Security SPI Firewall
Access Control

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 6 GHz Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network

Effective Time
Bandwidth Control
VPN Server • OpenVPN Server
• PPTP VPN Server
• L2TP/IPSec VPN Server
VPN Client • OpenVPN Client
• PPTP VPN Client
• L2TP/IPSec VPN Client
WiFi Encryption WPA-Personal
WPA2-Personal
WPA3-Personal
HARDWARE
Button 1× Reset Button
1× WPS
Ethernet Ports • 2× 5 Gbps WAN/LAN Ports + 1× 2.5 Gbps WAN/LAN Port

*Per Deco Unit
Supports WAN/LAN auto-sensing
USB Support 1× USB Port
FTP Server
Media Server
Samba Server
SOFTWARE
Advanced Features • Reboot Schedule
• Tapo/Kasa Onboarding
• IoT network & Device Isolation
• Static Routing Function
• Node/Band Connection Preference
Protocols IPv4
IPv6
Service Kits HomeShield
Learn More>
Parental Controls HomeShield Parental Controls
Youtube Restriction
SafeSearch
Custom Profiles
Professional Content Filter Library
Family Time
Bedtime
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service HomeShield QoS
QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Port Forwarding
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
Management Deco App
OTHERS
Certifications CE, FCC, RoHS
Environment Operating Temperature: 0°C~40°C (32 °F~104 °F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH

Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Connection to over 200 devices is based on laboratory test data, which analyzed the connections of different devices on the 6 GHz, 5 GHz, and 2.4 GHz bands simultaneously. These devices simulated a typical home scenario by running simultaneous applications in the same room that included 4K video, 1080p video, 720p video, file downloading, web browsing, IP cameras, and other IoT devices. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.

Use of Wi-Fi 7 (802.11be), Wi-Fi 6 (802.11ax), and features including Multi-Link Operation (MLO), 320 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA, MU-MIMO and BSS Color requires clients to also support the corresponding features. The 320 MHz bandwidth is only available on the 6 GHz band. Simultaneously, the 160 MHz and 240 MHz bandwidths or the 320 MHz bandwidth might not be available on the 5 GHz band or the 6 GHz band, respectively, in some regions/countries due to regulatory restrictions. Double channel width and speed refer to 320 MHz compared to 160 MHz for Wi-Fi 6 mesh.

§5 Gbps/2.5 Gbps internet speeds require compatible service plans and equipment. All WAN/LAN ports will operate as either WAN or LAN ports. Only one port can serve as a WAN port at a time.

*HomeShield includes both basic and advanced features. Advanced features require a paid subscription. For details, visit tp-link.com/homeshield. Some features are under development and will be supported with subsequent software updates.

4.2× faster Wi-Fi speed refers to the theoretical speeds of Wi-Fi 7 clients when connected to Deco BE65 Pro compared with a 2×2 MIMO Wi-Fi 6 or Wi-Fi 6E mesh. Wi-Fi 7 clients need to support Multi-Link Operation (MLO) and the 6 GHz band to reach up to 10 Gbps when connected to the 5 GHz and 6 GHz bands of Deco BE65 Pro simultaneously. 2×2 MIMO Wi-Fi 6 and Wi-Fi 6E mesh may only provide 2402 Mbps on the 5 GHz or 6 GHz bands separately.

※※4× Lower Latency refers to the latency improvement of Wi-Fi 7 mesh compared to Wi-Fi 6/6E mesh, based on laboratory test data. The test conditions had the same 5 GHz or 6 GHz single-frequency wireless interference and tested the maximum latencies of Wi-Fi 7 clients (with MLO turned on) connecting to the 5 GHz and 6 GHz bands of Deco BE65 Pro (with MLO turned on) simultaneously and to the 5 GHz or 6 GHz bands of a Wi-Fi 6/6E mesh (without the MLO function).

WiFi generations represent the wireless standard IEEE 802.11 a/b/g/n/ac/ax/be. Users may require an extra modem device that is compatible with their internet service provider to gain internet access.



Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, internet service provider factors, and other environmental conditions.

This Deco may not support all the mandatory features as ratified in IEEE 802.11be specification.

Further software upgrades for feature availability may be required.
