Archer C54
NewAC1200 Dual Band Wi-Fi Router
- Wi-Fi AC lebih cepat—dual-band AC1200 ideal untuk streaming video 4K dan pengunduhan berkecepatan tinggi.
- Cakupan Jangkauan Jauh—Antena 4× dan Beamforming menghadirkan jangkauan Wi-Fi yang luas dan koneksi yang andal.
- Multi-Mode 3-in-1—Mendukung mode Router, Access Point, dan Range Extender dengan fleksibel.
- Parental Controls—Mengelola kapan dan bagaimana perangkat yang terhubung dapat mengakses internet.
- Jaringan Tamu—Menyediakan akses terpisah bagi tamu untuk mengamankan jaringan host.
- Streaming HD Lancar—Mendukung Proxy/Snooping IGMP, Bridge, dan Tag VLAN untuk mengoptimalkan streaming IPTV.
- Mendukung IPv6—Kompatibel dengan IPv6 (Protokol Internet terbaru versi 6).
- Ringkas dan Dapat Digantung—Dirancang untuk menghemat ruang dan melengkapi dekorasi apa pun.
Family Wi-Fi.
Palm-Sized.
AC1200 Dual Band WiFi Router
Archer C54
-
Dual-Band WiFi
-
AC1200 WiFi Speed
-
Beamforming
-
MU-MIMO
-
Compact Design
-
Parental Controls
|
|
Fast Dual-Band WiFi
Dual-band Wi-Fi allows you to connect your demanding devices to the faster and clearer 5 GHz band, while a tradition 2.4 GHz band provides a far-reaching, stable connection to the rest of your devices.

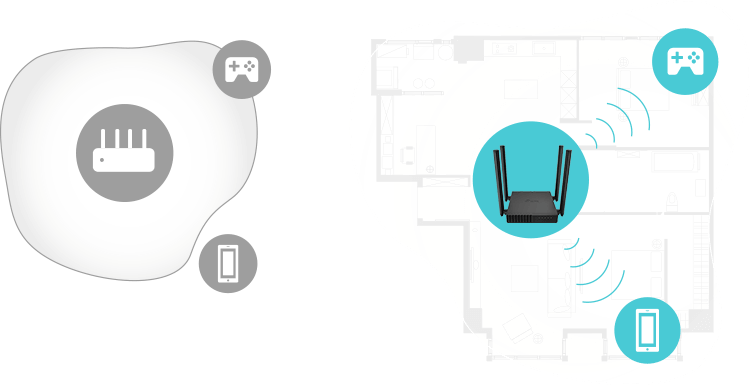

Boosted Signal throughout Your Home

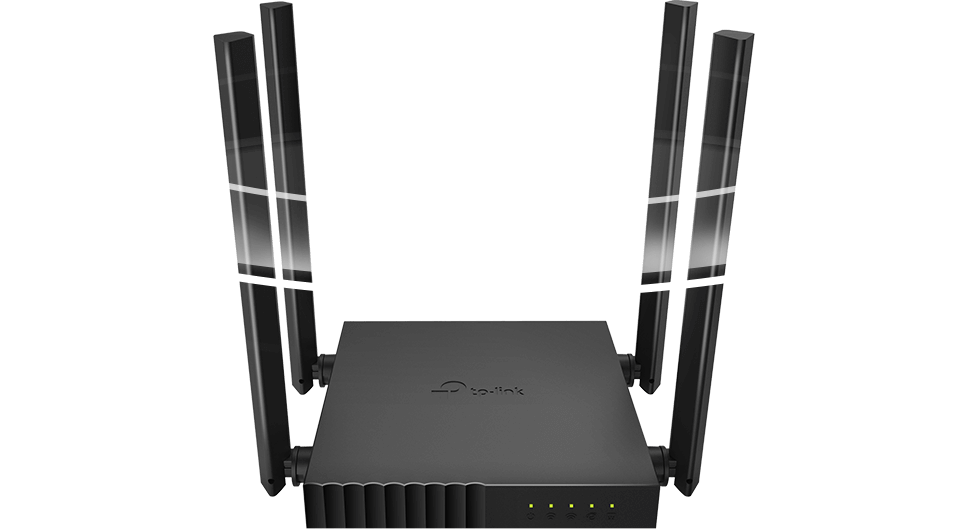

Access your entertainment from every corner of your home with 4 external high-performance antennas. Beamforming technology detects devices and concentrates wireless signals towards them, even if they are far away or low-powered.
4× Antennas
|
Beamforming
|
Talk to Devices Simultaneously
Equipped with MU-MIMO technology to connect more devices and maintain low latency. Concurrent streamings on 2 different MU-MIMO devices now will just be smooth as connecting only one, as long as you have enough bandwidth from your ISP.
Multi-Mode 3 in 1
Router Mode (Default)
Plug in an Ethernet cable to instantly create a private wireless network and share internet access with all your Wi-Fi devices.
Access Point Mode
Transform your existing wired network into a wireless one.
Range Extender Mode
Boost the existing wireless coverage in your house.
More Functions Despite the Size
Versatile Management
Easily manage your home network with versatile built-in tools, including Parental Controls, Guest Network, QoS, and more.
-
- Parental Controls
- Block content
- Limit online time
-
- Guest Network
- Use a different password
- Secure private network
-
- QoS
- Prioritize devices
IPv6 Supported |
IPTV Supported |
|
Easy Wi-Fi Sharing |
LED Control |
High Integration, Compact Size
Archer C54's system structure focuses on creating optimal WiFi. The advanced semiconductor technology helps integrate units including CPU, memory, and multi-stream processing unit onto a single chip to achieve high compatibility, bringing you the same power with a compact design.
As Stable as a Larger One
Archer C54 goes through rigorous repeated testing to ensure a final product reliable under serveral strenuous environments. The final result: 8 randomly selected Archer C54 routers collectively tested for 1,936 hours.
Continuous Transmission Test :
24 h
(Continuous 10 GB file uploads and downloads.)
|
Structure Test :
1.5 m + 120 min
(Drop impact test from 1.5 m height and a 120 min vibration test.)
|
Harsh Environment Test :
48 h
(Storage temperature: 70 °C and -20 °C.)
|
||
RAM Stress Test :
≥ 25,000
(Read and write combined.)
|
Capacity Test :
16 devices
(16 connected Wi-Fi devices continuously streaming videos.)
|
Flash Test :
≥ 2,000 I/O
(Read and write combined.)
|
Place it Anywhere
Dimension and Ports
5.6 in(141.2 mm)
1.0 in (24.3 mm)
4.5 in (115 mm)
4.2 in (106.7 mm)
|
Power
WPS/Rest Button
Fast Ethernet WAN Port
Fast Ethernet LAN Ports
|
Key Specs
WIRELESS | Standards |
|
WiFi Speeds |
|
|
WiFi Range |
|
|
WiFi Capacity |
|
|
HARDWARE | Ethernet Ports | 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
SECURITY | WiFi Encryption |
|
SOFTWARE | Network Security | SPI Firewall Access Control IP & MAC Binding |
Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
|
Parental Control | URL Filtering Time Controls |
|
Quality of Service | QoS by Device | |
PHYSICAL | Package Contents |
|
WIRELESS | |
---|---|
Standards | Wi-Fi 5IEEE 802.11ac/n/a 5 GHzIEEE 802.11n/b/g 2.4 GHz |
WiFi Speeds | AC12005 GHz: 867 Mbps (802.11ac)2.4 GHz: 300 Mbps (802.11n) |
WiFi Range | 3 Bedroom Houses 4× Fixed AntennasMultiple antennas form a signal-boosting array to cover more directions and large areasBeamformingConcentrates wireless signal strength towards clients to expand WiFi range |
WiFi Capacity | Medium Dual-BandAllocate devices to different bands for optimal performanceMU-MIMOSimultaneously communicates with multiple MU-MIMO clients |
Working Modes | Router ModeAccess Point ModeRange Extender Mode |
SECURITY | |
---|---|
Network Security | SPI FirewallAccess ControlIP & MAC BindingApplication Layer Gateway |
Guest Network | 1× 5 GHz Guest Network1× 2.4 GHz Guest Network |
WiFi Encryption | WEPWPAWPA2WPA/WPA2-Enterprise (802.1x) |
HARDWARE | |
---|---|
Processor | Single-Core CPU |
Ethernet Ports | 1× 10/100 Mbps WAN Port4× 10/100 Mbps LAN Ports |
Buttons | WPS/Reset Button |
Power | 9 V ⎓ 0.85 A |
SOFTWARE | |
---|---|
Protocols | IPv4IPv6 |
Parental Controls | URL FilteringTime Controls |
WAN Types | Dynamic IPStatic IPPPPoEPPTPL2TP |
Quality of Service | QoS by Device |
NAT Forwarding | Port ForwardingPort TriggeringDMZUPnP |
IPTV | IGMP ProxyIGMP SnoopingBridgeTag VLAN |
DHCP | Address ReservationDHCP Client ListServer |
DDNS | NO-IPDynDNS |
Management | Tether AppWebpageCheck Web Emulator> |
OTHER | |
---|---|
System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browserCable or DSL Modem (if needed)Subscription with an internet service provider (for internet access) |
Certifications | FCC, CE, RoHS |
Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉)Storage Temperature: -40℃~60℃ (-40℉ ~140℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
TEST DATA | |
---|---|
WiFi Transmission Power | CE EIRP:<20dBm(2.4GHz)<23dBm(5GHz)FCC: <30dBm(2.4GHz & 5GHz) |
WiFi Reception Sensitivity | 5GHz:11a 6Mbps:-93dBm;11a 54Mbps:-78dBm;11ac HT20 mcs8:69dBm;11ac HT40 mcs9:-66dBm;11ac HT80 mcs9:-62dBm;2.4GHz:11g 54Mbps:-78dBm;11n HT20 mcs7:-74dBm;11n HT40 mcs7:-71dbm; |
PHYSICAL | |
---|---|
Dimensions (W×D×H) | 4.5 × 4.2 × 1.0 in(115 × 106.7 × 24.3 mm) |
Package Contents | Wi-Fi Router Archer C54Power AdapterRJ45 Ethernet CableQuick Installation Guide |
- Kecepatan sinyal wifi maksimum adalah kecepatan fisik yang diperoleh dari spesifikasi Standar IEEE 802.11. Jangkauan, jangkauan, dan jumlah maksimum perangkat yang terhubung didasarkan pada hasil pengujian dalam kondisi penggunaan normal. Throughput data wifi yang sebenarnya, jangkauan wifi, dan jumlah perangkat yang terhubung tidak dijamin dan akan bervariasi akibat 1) faktor lingkungan, termasuk bahan bangunan, objek fisik, dan hambatan, 2) kondisi jaringan, termasuk interferensi lokal, volume, dan kepadatan lalu lintas, lokasi produk, kompleksitas jaringan, dan overhead jaringan, dan 3) keterbatasan klien, termasuk kinerja terukur, lokasi, kualitas koneksi, dan kondisi klien.
- Penggunaan MU-MIMO mengharuskan klien juga mendukung MU-MIMO.
